TNC225R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder

£999.99
£1,299.99
£999.99
In Stock

Order Today Get a FREE Battery Package

Mount Type: PM20L - Picatinny 20MOA L
Subtotal: £999.99
 Free Shipping
 2-Year Warranty for Thermal Products
 30-Day Returns
TNC225R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder

TNC225R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder

£1,299.99 £999.99

TNC225R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder

£1,299.99 £999.99
Mount Type: PM20L - Picatinny 20MOA L

    Featuring state-of-the-art thermal sensors for detecting targets and advanced high-definition digital night vision for identifying them, the TNC225R excels in delivering superior operational effectiveness in various environments and conditions.

    ...

    Thermal/Night Vision
    Combination

    Day&Night
    in All Conditions

    LRF
    BC Calculator

    Thermal: 3x-12x
    Night Vision: 5x-20x

    Thermal imaging offers superior nighttime detection ranges, enhanced by digital night vision to precisely identify targets with accuracy and reliability

    ThermNight TNC225R comes with a highly sensitive 12um pixel detector and an advanced algorithm enhanced 256x192 resolution combined with NETD ≤ 25mK. This allows you to detect heat signatures at further distances and positive lD your target with digital NV before engaging.

    Night Vision & ThermaI Design Ensures a Safe and Memorable Hunting Experience

    The Picture-In-Picture (PIP) feature integrates thermal detection and night vision identification into a single image. enabling confident engagement of intended targets with the Multi-Spectral ThermNight TNC225R.

    With a simple press of the mode the TNC225R allows for quick toggling between thermal and night vision, even when using Picture-In-Picture, making it a versatile solution for any task.

    Night Vision & ThermaI Design Ensures a Safe and Memorable Hunting Experience
    Thermal Imaging View
    Night Vision & Thermal View

    Day Or Night, See It ALL

    Equipped with the state-of-the-art SONY STARVIS 2 sensor, celebrated for its exceptional sensitivity in low-light conditions and remarkable image clarity, the ThermNight TNC225R delivers unmatched capabilities for detection and identification.

    Day Or Night, See It ALL
    Morning
    Twilight
    Evening

    Experience the thrill of the hunt with a compact and lightweight design

    With a deliberate emphasis on compact design and lightweight construction, the ThermNight TNC225R is engineered to thrive in all environments, measuring just 7 inches long and weighing a mere 22.8oz.

    Experience the thrill of the hunt with a compact and lightweight design

    the IP67 waterproof rating and a recoil rating up to .50 BMG ensures flawless operation in extreme conditions, making your hunting easy and reliable.

    Dual Aiming System Calibrated in One

    The ThermNight TNC225R's "one shot zeroing" function is available in both thermal imaging and day/night vision channel. With only one shot using the day/night vision, you can easily switch to the thermal and adjust the reticle to be zeroed to the same point of impact (POl) as your day/night vision, saving you time so you can focus on your hunt.

    Multispectral Mode Display for Better Detection and Identification

    With a focus on enhancing detection and identification processes, the ThermNight TNC225R offers unparalleled convenience: toggle effortlessly between display modes (Day/Night Vision, Thermal, or a hybrid) via Picture-in-Picture (PIP) at the touch of a button. Accelerate target recognition capabilities with the advanced Multi-Spectral ThermNiaht TNC225R.

    ThermNight-TNC225R-display-modes-Black-Hot

    Black Hot

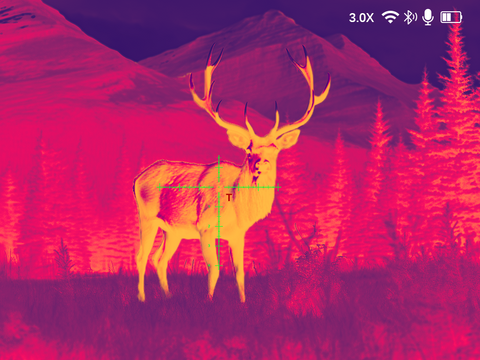

    ThermNight-TNC225R-display-modes-RedHot

    Red Hot

    ThermNight-TNC225R-display-modes-White-Hot

    White Hot

    ThermNight-TNC225R-display-modes-Iron-Hot

    Iron Hot

    ThermNight-TNC225R-display-modes-Night-Vision

    Night Vision

    ThermNight-TNC225R-display-modes-Night-Vision&Thermal

    Night Vision & Thermal

    ThermNight-TNC225R-display-modes-Day-Vision

    Day Vision

    Detachable IR Illuminator

    The removable IR Illuminator allows you to switch between 850nm or 940nm.
    (940nm IR illuminator can be purchased separately.)

    Other Features


    Built in 32Gb Storage

    Built in 32Gb Storage

    Detachable Eye Cup Designed With Metal Threads

    Detachable Eye Cup
    Designed With Metal Threads

    Digital Zoom Wheel

    Digital Zoom
    Wheel

    Digital Gyroscope For Accurate Inclination And Cant Angle

    Digital Gyroscope For
    Accurate Inclination And
    Cant Angle

    Up to 5 hour Battery Life

    Up to 5 hour Battery
    Life

    Aiming Methods:Dial-In Or Holdover

    Aiming Methods:
    Dial-In Or Holdover

    Package Contents

    TNC225R
    ×1
    PM20L
    ×1
    Eye Cup
    ×1
    Flip Up Cover
    ×1
    User Manual
    ×1
    Lens Cleaning Cloth
    ×1
    USB Cable
    ×1

    -TNC225R SPECIFICATIONS-

    Physical Specifications


    Net Weight
    Dimensions
    Storage
    22.8oz
    6.7*3.3*3.1 Inches
    Internal Storage, 32GB
    LRF Maximum Measuring Range
    WIFI/APP
    Bluetooth
    5-1100yards
    Yes
    Yes
    Ingress Protection
    Operating Temperature
    Shock Resistance
    IP67
    -4~122F
    800Gs

    Display Specifications


    Type
    Display Resolution
    Frame Rate
    Micro-OLED
    1024*768 pixels
    50FPS

    Battery Power Supply


    Battery Type
    Operating Time
    External Power Supply
    18650 Battery(flat top)
    5h
    5V - Type C USB

    THERMAL CHANNEL - Sensor Specifications


    Resolution
    Field of View(FOV)
    Frame Rate
    256x192px
    7.03°x 5.28°
    50FPS
    Pixel Size
    NETD
    Focal Length of Objective Lens
    12x12um
    ≤25mk@25℃
    25mm
    Base Magnification
    Digital Zoom
    Image Sensor
    3X
    3X,6X,9X,12X
    Uncooled Infrared Image Sensor

    VISIBLE LIGHT CHANNEL - Sensor Specifications


    Resolution
    Sensor Frame Rate
    Video Record Resolution
    1920*1080 pixels
    60FPS
    1024*768 pixels

    VISIBLE LIGHT CHANNEL - Optical Specifications


    Objective Lens Focal Length
    Field of View(FOV)
    Eye-Relief
    52mm
    6.13°x 3.45°
    45mm/1.8 Inches
    Base Magnification
    Digital Zoom
    Diopter Adjustment
    5X
    5X,7.5X,10X,12X,15X,17.5X,20X
    ±5D
    IR Wavelength
    Infrared Power
    850/940nm
    Class 3R Eye Safe


    Net Weight
    22.8oz
    Dimensions
    6.7*3.3*3.1 Inches
    Storage
    Internal Storage, 32GB
    LRF Maximum Measuring Range
    5-1100yards
    WIFI/APP
    Yes
    Bluetooth
    Yes
    Ingress Protection
    IP67
    Operating Temperature
    -4~122F
    Shock Resistance
    800Gs


    Type
    Micro-OLED
    Display Resolution
    1024*768 pixels
    Frame Rate
    50FPS


    Battery Type
    18650 Battery(flat top)
    Operating Time
    5h
    External Power Supply
    5V - Type C USB


    Resolution
    256x192px
    Field of View(FOV)
    7.03°x 5.28°
    Frame Rate
    50FPS
    Pixel Size
    12x12um
    NETD
    ≤25mk@25℃
    Focal Length of Objective Lens
    25mm
    Base Magnification
    3X
    Digital Zoom
    3X,6X,9X,12X
    Image Sensor
    Uncooled Infrared Image Sensor


    Resolution
    1920*1080 pixels
    Sensor Frame Rate
    60FPS
    Video Record Resolution
    1024*768 pixels


    Objective Lens Focal Length
    52mm
    Field of View(FOV)
    6.13°x 3.45°
    Base Magnification
    5X
    Digital Zoom
    5X,7.5X,10X,12X
    15X,17.5X,20X
    Eye-Relief
    1.8 Inches
    Diopter Adjustment
    ±5D
    IR Wavelength
    850/940nm
    Infrared Power
    Class 3R Eye Safe

    Customer Reviews

    Based on 9 reviews
    89%
    (8)
    11%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    K
    K.B.
    The Device I've Waited For

    This is a device that has transformed my sub 12 ft lb PCP rifle.

    I use it solely to provide food for the table in my large, stealth camper.

    The scope is my first digital scope, It has already provided multiple tasty treats.

    It is reasonably easy to master, set-up and use. I'm in my early 70's, and it has been (with the help of YouTube) I'm gradually mastering it.

    The quality of the image is good, the features are truly impressive, the thermal image although low-res it performs well and adds an edge especially in complete darkness.

    The ballistic calculator was easy to set-up and it's accuracy is precise.

    Battery life is acceptable.

    Considering the price, this is a game changer for small game, it will I believe be essential in the coming years, my final chapters, to feed me with fresh meat.

    I have two bleats, the first is a lack of an SD card.
    The second lack of lens covers.

    I highly recommend this well manufactured, robust product.

    J
    J.S.
    Dnt thermnight

    Scope works really well and am really pleased with it however I think the instructions were poor and would far benefit from am official set up video which explains ballistic calculator and setup and zeroing of the thermal other than that am very happy with it and slowly getting used to it . I did find that it struggled at the indoor range where I set it up as slight light Flickr was exaggerated ob the digital display. That aside put the scope out side and it is crystal clear at day or night.

    I
    I.P.

    The best money I've spent on shooting stuff in the last 20 years

    C
    C.G.
    TNC225R

    I am a new comer to thermal scopes.
    After initial trials the scope is excellent for my present needs.
    My only comment/question is where can I buy and how to install the IR940nm illuminator on the TNC225R and on the TNC635R which I am planning to order in the near future.

    D
    D.L.
    Dtrain

    Fantastic night thermal scope so compact and easy and accurate to use and at a great price unlike other manufacturers of this type !!

    Really pleasure to use with my edgun leshiy 2
